Reelcraft® 81000 OHP 81000 OHP

Reelcraft® 81000 OHP

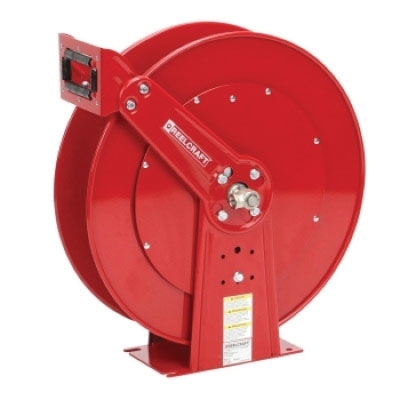

Reelcraft® 80000 Powder-Coated Steel Heavy-Duty High-Pressure Grease Hose Reel, 3/8 in ID x 0.73 in OD, 100 ft L, 5000 psi

  • Manufacturer: Reelcraft Industries
  • Brand: Reelcraft®
  • ARGPN: 81000 OHP
  • MPN: 81000 OHP
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Reelcraft Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Reelcraft® Heavy-Duty High-Pressure Grease Hose Reel, Series: 80000, 100 ft Length Hose, 3/8 in Hose Inside Diameter, 0.73 in Hose Outside Diameter, Connection Type: FPT x FPT, Inlet Size: 3/8 in, Outlet Size: 3/8 in, Winding Method: Spring Retractable, Material Construction: Steel, Finish: Powder-Coated, Red, 210 deg F, 5000 psi, Dimensions: 25-3/8 in L x 24 in W x 10-1/2 in H

California residents see Prop 65 WARNINGS

Color      :      Red
Connection Type      :      FPT x FPT
Dimensions      :      25-3/8 in L x 24 in W x 10-1/2 in H
Finish      :      Powder-Coated
Hose Inside Diameter      :      3/8 in
Hose Length      :      100 ft
Hose Outside Diameter      :      0.73 in
Inlet Size      :      3/8 in
Material      :      Steel
Material Construction      :      Steel
Outlet Size      :      3/8 in
Pressure Rating      :      5000 psi
Product Type      :      Grease Hose Reel
Series      :      80000
Temperature Rating      :      210 deg F
Winding Method      :      Spring Retractable

Reelcraft® Series 80000 and D80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All steel construction and a baked-on powder-coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy-duty applications. Series D80000 reels are also supplied with Reelcraft® ball-bearing style swivel.

  • Reinforced steel - the steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
  • The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
  • The full flow swivel combines the highest-grade seal design and materials with bearing areas to ensure maximum service life
  • Quality finish and corrosion-resistant - individually powder-coated components offer the maximum protection from premature corrosion
  • Made in USA

Warranty: 2 Years Limited

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_4600OLP_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_81000OHP_SS.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_81000OHP_II.pdf
