Reelcraft® SD13000 OMP SD13000 OMP

Reelcraft® SD13000 OMP

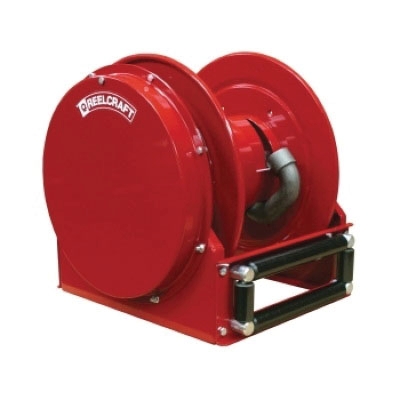

Reelcraft® SD10000 Steel Ultimate-Duty Medium-Pressure Oil Hose Reel, 3/4 in ID x 1.188 in OD, 50 ft L, 3000 psi

  • Manufacturer: Reelcraft Industries
  • Brand: Reelcraft®
  • ARGPN: SD13000 OMP
  • MPN: SD13000 OMP
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Reelcraft Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Reelcraft® Ultimate-Duty Medium-Pressure Oil Hose Reel, Series: SD10000, 50 ft Length Hose, 3/4 in Hose Inside Diameter, 1.188 in Hose Outside Diameter, Connection Type: FPT x FPT, Inlet Size: 1 in, Outlet Size: 3/4 in, Winding Method: Spring Retractable, Material Construction: Steel, 210 deg F, 3000 psi, Dimensions: 18-1/4 in L x 19-1/8 in W x 18-3/4 in H

California residents see Prop 65 WARNINGS

Connection Type      :      FPT x FPT
Dimensions      :      18-1/4 in L x 19-1/8 in W x 18-3/4 in H
Hose Inside Diameter      :      3/4 in
Hose Length      :      50 ft
Hose Outside Diameter      :      1.188 in
Inlet Size      :      1 in
Material      :      Steel
Material Construction      :      Steel
Outlet Size      :      3/4 in
Pressure Rating      :      3000 psi
Product Type      :      Oil Hose Reel
Series      :      SD10000
Temperature Rating      :      210 deg F
Winding Method      :      Spring Retractable

Reelcraft® Series SD10000 hose reels are designed to facilitate larger diameter 3/4 and 1 in hose up to 50 ft. They feature a high-quality external drive spring and a heavy-gauge all-bolted together frame. This is the most compact reel in its class, making it ideal for mounting in truck cabinets or other areas where space is limited.

  • High impact UHMW composite roller guides have outstanding wear and corrosion resistance
  • Containerized external drive spring is easily and safely serviced
  • Ductile iron fluid path is strong and reliable
  • Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life
  • Made in USA

Warranty: 2 Years Limited

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_4600OLP_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_SD13000OMP_SS.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_SD13000OMP_II.pdf
