Stucchi 801304029

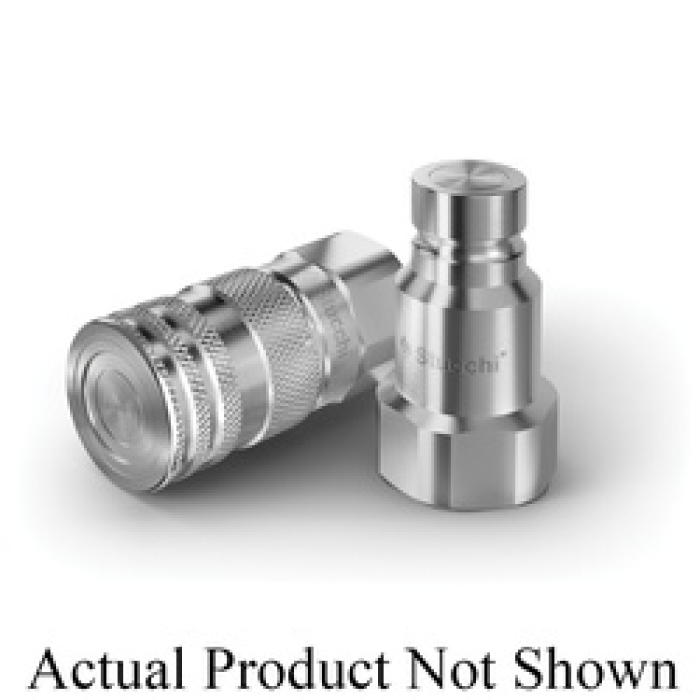

Stucchi A Premier Series 801304029 Flat Face Nipple, 3/4 in Male x 3/4 in SAE, Steel
- Manufacturer: Stucchi USA
- Brand: Stucchi
- ARGPN: STU-801304029
- MPN: 801304029
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Stucchi USA factory-direct delivery:
-
Series A is the evolution of Stucchi® technology and quality applied to flat face couplings. The series has a internal design combined with a high resistance material to allow the achievement of higher operating pressure and minimal pressure drop. The modular structure allows the flexibility to offer several-types of threads or special ports in order to satisfy diverse applications while maintaining a compact dimension. These features make Series A couplings the leader in many hydraulics applications where high performance is necessary with the elimination of fluid loss and contamination in the circuit.
Stucchi Flat Face Nipple, A Premier Series, Nipple Fitting, 3/4 in Connection Size 1, Male Connection Type 1, 3/4 in Connection Size 2, SAE Connection Type 2, Male|SAE Connection, Steel, Carbon Steel Material Construction, Zinc-Plated, 1.81 in Hex, 3.3 in L, 4785 psi Maximum Operating Pressure, -20 to 100 deg C Operating, 1.18 in OD
| Additional Information | : | 1.18 in OD |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type | : | Male|SAE |
| Connection Type 1 | : | Male |
| Connection Type 2 | : | SAE |
| Dimensions | : | 3.3 in L |
| Finish | : | Zinc-Plated |
| Fitting Type | : | Nipple |
| Hex Size | : | 1.81 in |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 4785 psi |
| Operating Temperature | : | -20 to 100 deg C |
| Series | : | A Premier Series |
