Stucchi 805204005 805204005

Stucchi 805204005

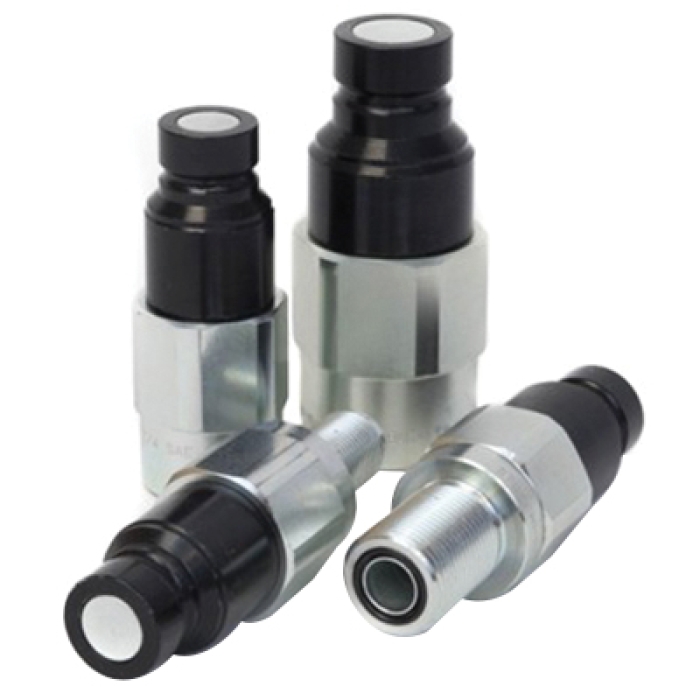

Stucchi APM Carbon Steel Flat Face Coupling, 1/2 in Male Nipple x 3/4 in SAE Female Threaded

  • Manufacturer: Stucchi USA
  • Brand: Stucchi
  • ARGPN: 805204005
  • MPN: 805204005
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Stucchi Flat Face Coupling, Series: APM, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: SAE Threaded, Gender 2: Female, Connection Size 2: 3/4 in, Hex Size: 1.42 in, 4785 psi, Material Construction: Carbon Steel, Dimensions: 3.68 in L x 1.52 in W, Dimension Standards: ISO 16028

Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Fitting
Connection Type 2      :      SAE Threaded
Dimension Standards      :      ISO 16028
Dimensions      :      3.68 in L x 1.52 in W
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1.42 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      4785 psi
Series      :      APM
Shape      :      Coupling

The APM Series flat face couplings are state-of-the-art solutions for high residual pressure. They address residual pressure in a circuit anywhere thermal expansion of trapped fluid causes pressure to develop and connect by hand with residual pressure, without releasing any fluid into the environment. The APM is intended to relieve pressure within itself only.

  • Relieves pressure within itself only
  • Connect under high-pressure, by hand
  • Flat face design eliminates leakage and contamination in the circuit
  • Male body black zinc-plated for identification

Applications: For mobile equipment and attachment tools, where sun exposure/temperature change causes pressure due to thermal expansion of trapped fluid, any application where static pressure can get locked into the system

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_801301012_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_805201007_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_805201007_TD.pdf
