Stucchi 800801008

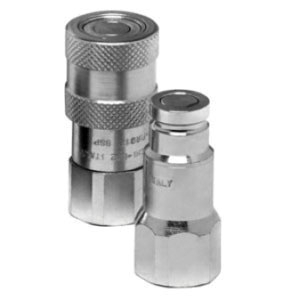

Stucchi Flat Face Interchange Coupling, Series: FIRG, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.42 in, 14500 psi Burst, Material Construction: Carbon Steel, Dimensions: 3.18 in L x 1.5 in W, Dimension Standards: ISO 16028, 100 deg C

The FIRG Flat Face Series, the original ISO 16028 interchangeable coupling, continues to offer good performance, long life and competitive pricing. The integrated sealing mechanism greatly reduces premature wear caused by movement between coupler and nipple parts affected by impulse pressure and the weight of the hoses and tubing when the coupling is in horizontal position.

• Non-spill design avoids fluid loss during connection/disconnection
• Minimal air inclusion during connection
• Tight tolerances ensure equal loading of couplers
• Used anywhere fluid loss and hydraulic circuit contamination need to be reduced or eliminated
• Easy cleaning of the flat faces that prevents the ingress of dirt during the coupling ensuring the cleaning of the circuit
• Minimum loss of fluid during decoupling while fully respecting the environment
• Irrelevant air inlet during coupling/decoupling
• The particular internal design guarantees maximum resistance and minimum loss of load, leading to the energy
• Good resistance to pulsating pressures
• Compact dimensions
• Safety and ease of use

Applications: For mobile construction, agriculture and mining operations, general industrial plants
