Stucchi 806501010 806501010

Stucchi 806501010

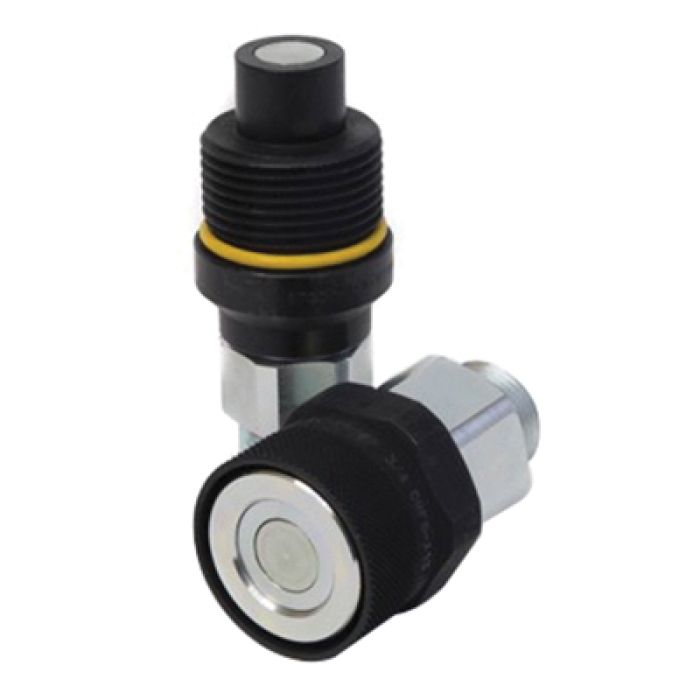

Stucchi VEP Carbon Steel Flat Face Coupler, 1-1/4 in Coupler x 1-1/4 in FNPTF

  • Manufacturer: Stucchi USA
  • Brand: Stucchi
  • ARGPN: 806501010
  • MPN: 806501010
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Stucchi USA factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Stucchi Flat Face Coupler, Series: VEP, Connection Type 1: Fitting, Connection Size 1: 1-1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1-1/4 in, Hex Size: 2.17 in, 6815 psi, Material Construction: Carbon Steel, Dimensions: 4.2 in L x 2.75 in W, -20 to 100 deg C

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Fitting
Connection Type 2      :      NPTF
Dimensions      :      4.2 in L x 2.75 in W
Gender 2      :      Female
Hex Size      :      2.17 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      6815 psi
Series      :      VEP
Shape      :      Coupler
Temperature Rating      :      -20 to 100 deg C

The "VEP-P" screw flat face coupling Series is the Stucchi solution for hydraulic applications requiring high operating pressures and connection with residual pressure trapped in the circuit. The screw connection system eliminates the premature wear or "brinelling" typically associated with locking ball connection systems when used in high impulse circuits. The triple valve system allows connection of the coupling safely even in the presence of high internal residual pressure and at the same time eliminates fluid loss during the connection -disconnection process.

  • Connection under residual pressure is allowed in one side and the internal valve system allows an easy connection
  • Flat face is easy-to-clean, reducing the inclusion of contamination to the hydraulic circuit
  • Minimal fluid loss during disconnection, reducing fluid loss to the environment
  • Minimal air inclusion during connection/disconnection
  • Internal pressure release valve system allows an easy connection with high internal residual pressure
  • Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
  • The modular design allows flexibility with a wide range of configurations
  • Good resistance at impulse pressures
  • Compact slim design
  • Safe and simple to use
  • Interchanges with VEPHD, VEPHDL Series
  • Connect/disconnect up to 25 MPa/3625 psi residual pressure
  • Eliminates brinelling, reduces leakage
  • Saves time changing tool
  • All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure

Applications: For all large equipment needing junction points in circuit cranes, drilling machines, oil field, well head drives, porta-power, excavators with auxiliary line for attachments thumbs, grapples, hammers, compactors/hopaks

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_F. A13D 1_2 NPT_CAT.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Stucchi_F. VEP21P 1 1_4 NPT_II.pdf
