Synflex® 3TR7-04-2-250BX 3TR7-04-2-250BX

Synflex® 3TR7-04-2-250BX

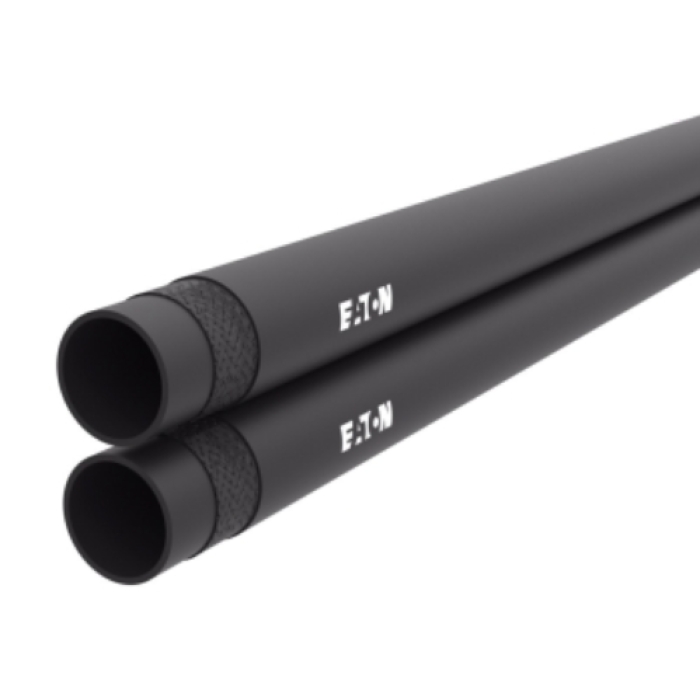

Synflex® 3TR7 Black Nylon Twin-Line Hydraulic Hose, 1/4 in, 1 ft L, 2800 psi

  • Manufacturer: Danfoss Power Solutions
  • Brand: Synflex®
  • ARGPN: 3TR7-04-2-250BX
  • MPN: 3TR7-04-2-250BX
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Synflex® Twin-Line Hydraulic Hose, Series: 3TR7, Nominal Size: 1/4 in, Dash Size: 04, 0.49 in OD, 1/4 in ID, 21 ft Length, 2800 psi, SAE Rating: SAE 100R7, Material Construction: Nylon, Polyurethane Cover, Construction: 1-Ply Braid, Black, 1-1/4 in Bend Radius, Resistance Properties: Abrasion, Chemical, Ozone, UV, -40 deg F Low, 212 deg F High

Bend Radius      :      1-1/4 in
Color      :      Black
Construction      :      1-Ply Braid
Cover Material      :      Polyurethane
Dash Size      :      04
Inside Diameter      :      1/4 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      1/4 in
Outside Diameter      :      0.49 in
Pressure Rating      :      2800 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion, Chemical, Ozone, UV
SAE Rating      :      SAE 100R7
Series      :      3TR7
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Eaton Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.

  • The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
  • Eaton Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
  • Ability to mold into configurations that match system design
  • The new TPU and polyester cover increases abrasion-resistant by 10%
  • Lift and handle heavy loads with hose power
  • Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
  • Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
  • Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose
  • Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
  • Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
  • Special reinforcements on the thermoplastic hoses help reduce machine noise

Applications: General construction, general hydraulics, lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus and tools, water jetter drain/sewer, agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, forklifts and freezer applications

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3TR18CT-04-2-250BX_CAT.pdf
