Synflex® 3VE0-03-250BX 3VE0-03003

Synflex® 3VE0-03-250BX

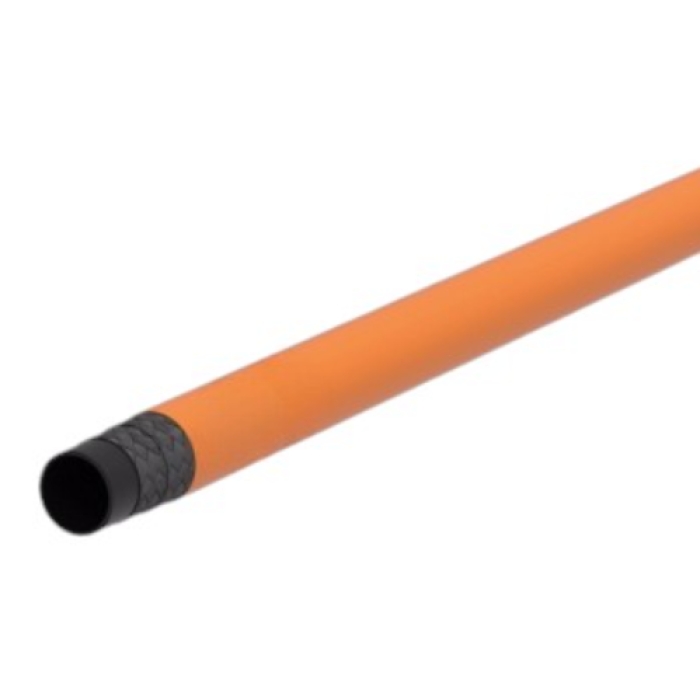

Synflex® 3VE0 Orange Nylon-Lined Very High-Pressure Non-Conductive Hose, 3/16 in, 1 ft L, 10000 psi

Add To Favorites
  1. pin-int

Synflex® Very High-Pressure Non-Conductive Hose, Series: 3VE0, Nominal Size: 3/16 in, Dash Size: 03, 0.52 in OD, 0.18 in ID, 21 ft Length, 10000 psi, SAE Rating: SAE J517, Material Construction: Nylon-Lined, Non-Perforated Polyurethane Cover, Construction: 4-Spiral High-Tensile Aramid Fiber, Orange, 1-1/2 in Bend Radius, Resistance Properties: Abrasion, UV, -40 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      1-1/2 in
Color      :      Orange
Construction      :      4-Spiral High-Tensile Aramid Fiber
Cover Material      :      Non-Perforated Polyurethane
Dash Size      :      03
Inside Diameter      :      0.18 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon-Lined
Nominal Size      :      3/16 in
Outside Diameter      :      0.52 in
Pressure Rating      :      10000 psi
Product Type      :      Thermoplastic Hose
Resistance Properties      :      Abrasion, UV
SAE Rating      :      SAE J517
Series      :      3VE0
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
  • Less than 50 uA leakage when subjected to 75000 V/ft for 5 min
  • Compact size
  • Low elongation
  • Nylon-lined core tube

Applications: General hydraulic systems that may contact high voltage sources, rescue equipment and tools, mobile machinery and aerial equipment, designed for permanent high-pressure fittings with hose guards

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3VE0-03003_CAT.pdf
