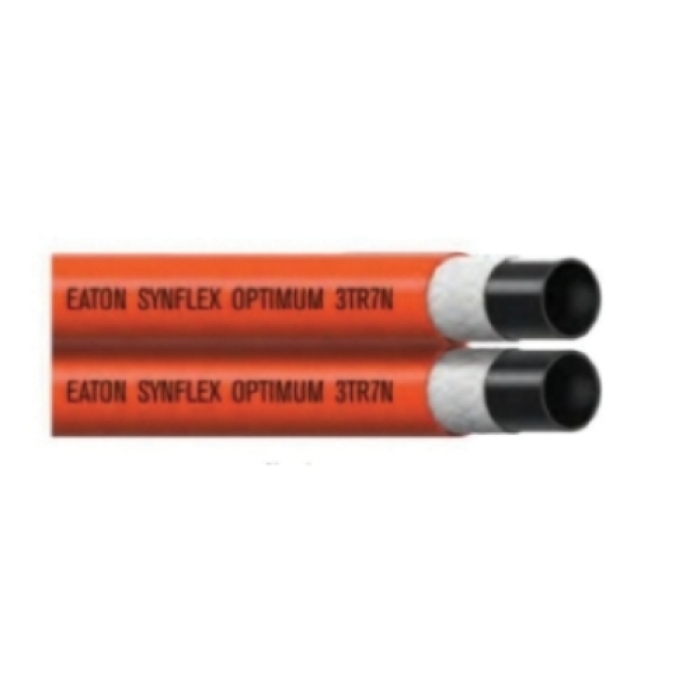

Synflex® 3TR7N-04-2-250BX

Synflex® Optimum Twin-Line Medium Pressure Non-Conductive Hydraulic Hose, Series: 3TR7N, Nominal Size: 1/4 in, Dash Size: 04, 0.49 in OD, 1/4 in ID, 0.16 in Thick Wall, 21 ft Length, 2800 psi, SAE Rating: SAE 100R7, Material Construction: Nylon, Polyurethane Cover, Construction: 1-Ply Braid, Orange, 1-1/4 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 212 deg F High

Eaton Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.

• The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
• Eaton Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
• Ability to mold into configurations that match system design
• The new TPU and polyester cover increases abrasion-resistant by 10%
• Lift and handle heavy loads with hose power
• Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
• Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
• Synthetic reinforced thermoplastic hoses are about 2X lighter then equivalent wire braided rubber hose
• Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
• Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
• Special reinforcements on the thermoplastic hoses help reduce machine noise

Applications: General hydraulics, material handling, chemical transfer and marine steering

• Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3TR7N042250BX_CAT.pdf
