Synflex® 3TR7N-12-2-200BX 3TR7N-12-200BX

Synflex® 3TR7N-12-2-200BX

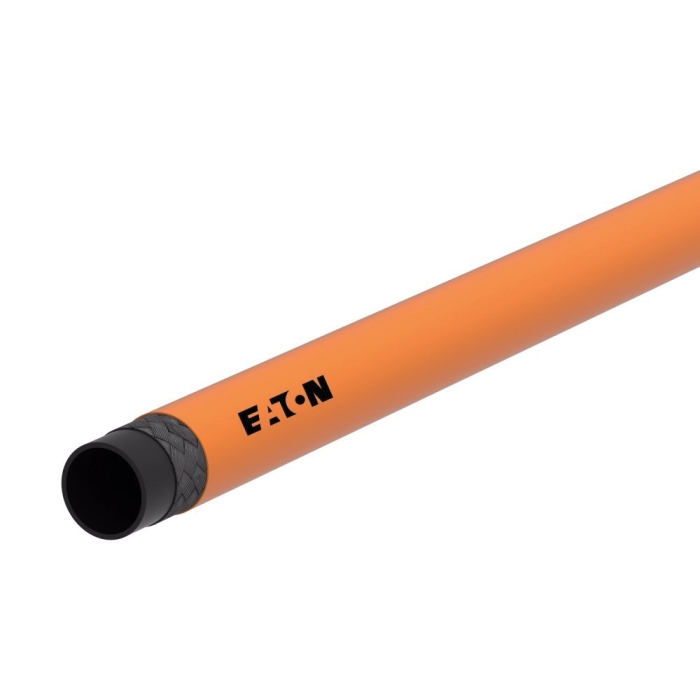

Synflex® Optimum 3TR7N Orange Nylon Twin-Line Medium Pressure Non-Conductive Hydraulic Hose, 3/4 in, 1 ft L, 1250 psi

Add To Favorites
  1. pin-int

Synflex® Optimum Twin-Line Medium Pressure Non-Conductive Hydraulic Hose, Series: 3TR7N, Nominal Size: 3/4 in, Dash Size: 12, 1.04 in OD, 3/4 in ID, 0.16 in Thick Wall, 1 ft Length, 1250 psi, SAE Rating: SAE 100R7, Material Construction: Nylon, Polyurethane Cover, Construction: 1-Ply Braid, Orange, 5 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      5 in
Color      :      Orange
Construction      :      1-Ply Braid
Cover Material      :      Polyurethane
Dash Size      :      12
Inside Diameter      :      3/4 in
Length      :      200 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      3/4 in
Outside Diameter      :      1.04 in
Pressure Rating      :      1250 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R7
Series      :      3TR7N
Sub Brand      :      Optimum
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.16 in

Eaton Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.

  • The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
  • Eaton Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
  • Ability to mold into configurations that match system design
  • The new TPU and polyester cover increases abrasion-resistant by 10%
  • Lift and handle heavy loads with hose power
  • Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
  • Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
  • Synthetic reinforced thermoplastic hoses are about 2X lighter then equivalent wire braided rubber hose
  • Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
  • Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
  • Special reinforcements on the thermoplastic hoses help reduce machine noise

Applications: General hydraulics, material handling, chemical transfer and marine steering

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3TR7N042250BX_CAT.pdf
