Synflex® 3TR8N-08-250BX 3TR8N-08-250BX

Synflex® 3TR8N-08-250BX

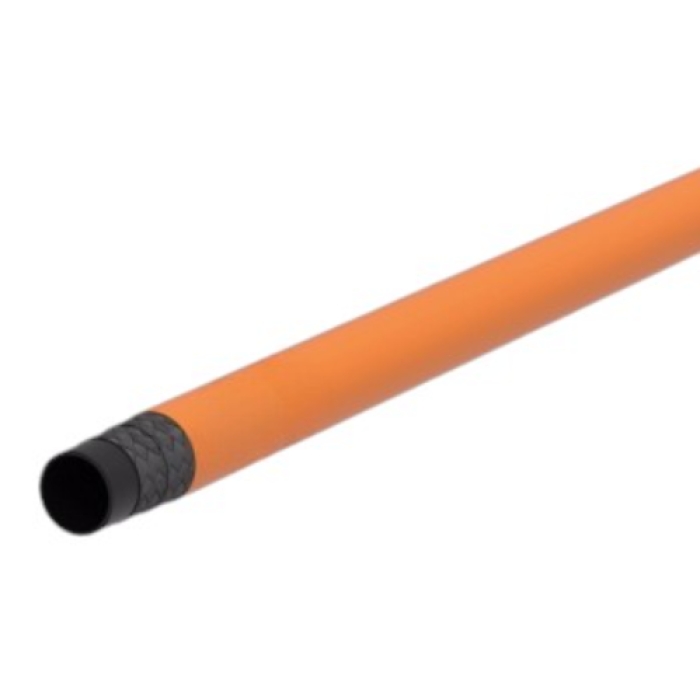

Synflex® Optimum 3TR8N Orange Nylon Non-Conductive Hydraulic Hose, 1/2 in, 1 ft L, 3550 psi

Add To Favorites
  1. pin-int

Synflex® Optimum Non-Conductive Hydraulic Hose, Series: 3TR8N, Nominal Size: 1/2 in, Dash Size: 08, 0.9 in OD, 1/2 in ID, 0.16 in Thick Wall, 21 ft Length, 3550 psi, SAE Rating: SAE 100R8, Material Construction: Nylon, Polyurethane Cover, Construction: 2-Ply Braid, Orange, 3 in Bend Radius, Resistance Properties: Abrasion, Chemical, Ozone, UV, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Orange
Construction      :      2-Ply Braid
Cover Material      :      Polyurethane
Dash Size      :      08
Inside Diameter      :      1/2 in
Length      :      250 ft
Material      :      Nylon
Material Construction      :      Nylon
Nominal Size      :      1/2 in
Outside Diameter      :      0.9 in
Pressure Rating      :      3550 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion, Chemical, Ozone, UV
SAE Rating      :      SAE 100R8
Series      :      3TR8N
Sub Brand      :      Optimum
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.16 in

Eaton Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.

  • The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
  • Eaton Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
  • Ability to mold into configurations that match system design
  • The new TPU and polyester cover increases abrasion-resistant by 10%
  • Lift and handle heavy loads with hose power
  • Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
  • Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
  • Synthetic reinforced thermoplastic hoses are about 2X lighter then equivalent wire braided rubber hose
  • Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
  • Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
  • Special reinforcements on the thermoplastic hoses help reduce machine noise

Applications: Air tools, cooling/misting/dust, suppression, forestry delimber, general construction, general hydraulic, high pressure chemical transfer, marine steering, mobile machinery, utility vehicles, recreational vehicles, rescue tools and equipment
