Weatherhead® A690 A690

Weatherhead® A690

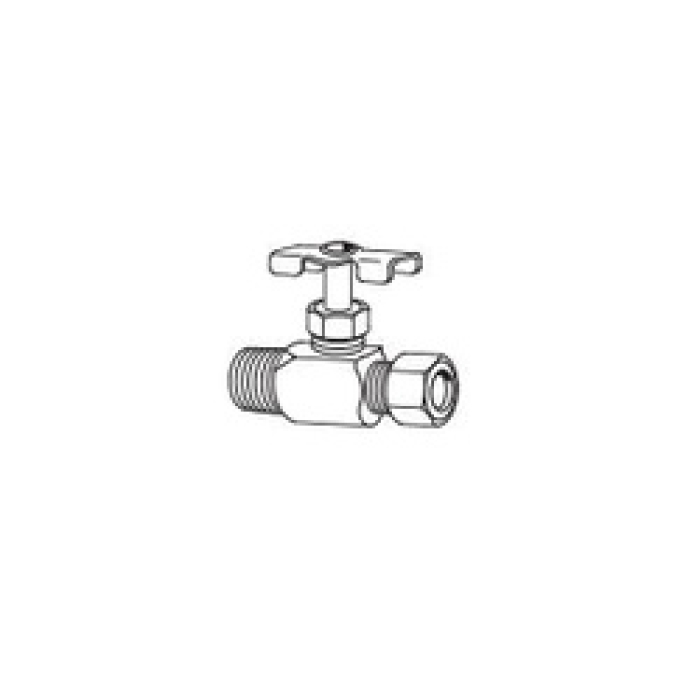

Weatherhead® A690 Straightway Needle Valve, 1/4 x 1/8 in, Compression x MPT, Brass, 150 psi

  • Manufacturer: Danfoss Power Solutions
  • Brand: Weatherhead®
  • ARGPN: A690
  • MPN: A690
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Weatherhead® Straightway Needle Valve, 1/4 x 1/8 in Nominal, Compression x MPT Connection, 150 psi, 1.19 in Inlet to Outlet Length, 1.03 in Top to Inlet Center, Brass Body, Steel Handle, -65 to 250 deg F

Body Material      :      Brass
Connection Type      :      Compression x MPT
Handle Material      :      Steel
Inlet to Outlet Length      :      1.19 in
Nominal Size      :      1/4 x 1/8 in
Pressure Rating      :      150 psi
Temperature Rating      :      -65 to 250 deg F
Top to Inlet Center      :      1.03 in
Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_1105X25_Catalog.pdf
