Weatherhead® 4SA8FRB8

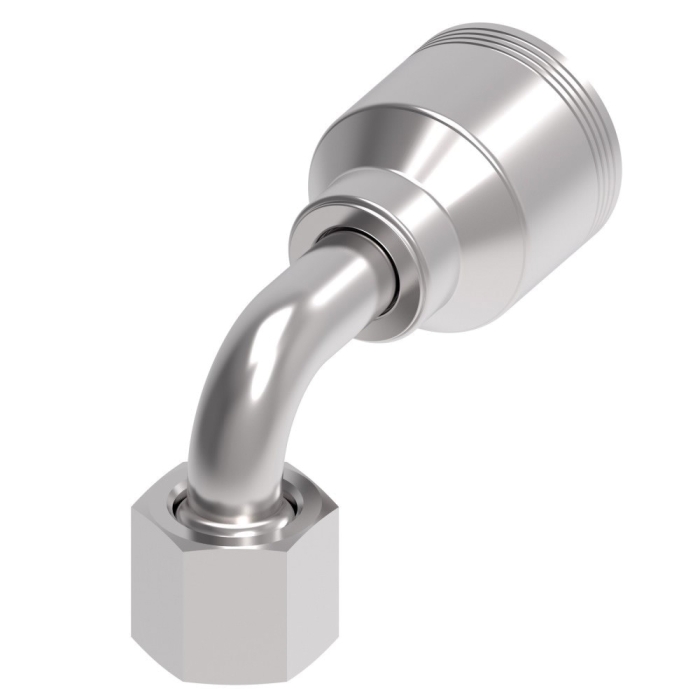

Weatherhead® 4S Series Dura-Kote Carbon Steel Female ORFS Swivel 4-Spiral Crimp Hose 90 deg Short Drop Elbow, 1/2 in

Manufacturer: Danfoss Power Solutions
Brand: Weatherhead®
ARGPN: 4SA8FRB8

MPN: 4SA8FRB8

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Weatherhead® 4-Spiral Crimp Hose 90 deg Short Drop Elbow, Series: 4S, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 13/16-16, Hex Size: 15/16 in, Cut-Off Factor: 1.67 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses, Dimensions: 2.74 in L x 1.335 in W x 2.247 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1/2 in
Connection Size 2	:	1/2 in
Connection Type	:	Hose~ORFS Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	ORFS Swivel
Cut-Off Factor	:	1.67 in
Dimension Standards	:	SAE J1176
Dimensions	:	2.74 in L x 1.335 in W x 2.247 in H
Finish	:	Dura-Kote
Fitting Type	:	90 deg Elbow
For Use With	:	EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses
Gender 2	:	Female
Hex Size	:	15/16 in
Hose Dash Size	:	08
Material	:	Steel
Material Construction	:	Carbon Steel
Nominal Size	:	1/2 in
Series	:	4S
Shape	:	90 deg Elbow
Thread Size 2	:	13/16-16

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
