Weatherhead® 4SA32MP32

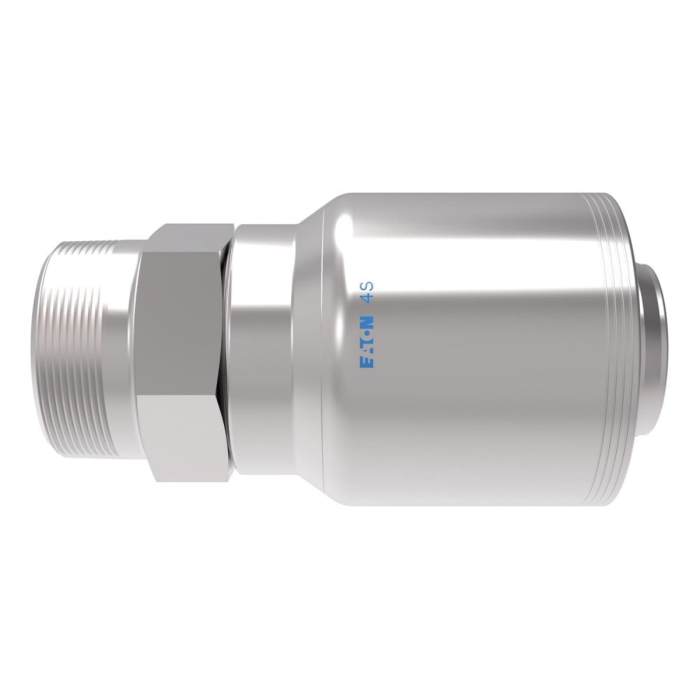

Weatherhead® 4S Series Dura-Kote Carbon Steel MNPTF Rigid 4-Spiral Crimp Straight Hose Fitting, 2 in

Manufacturer: Danfoss Power Solutions
Brand: Weatherhead®
ARGPN: 4SA32MP32

MPN: 4SA32MP32

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Weatherhead® Rigid 4-Spiral Crimp Straight Hose Fitting, Series: 4S, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 2 in, Nominal Size: 2 in, Thread Size 2: 2-11-1/2, Hex Size: 2-1/2 in, Cut-Off Factor: 2.84 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses, Dimensions: 5.91 in L x 3.39 in W x 3.39 in H, Dimension Standards: SAE J1176

Connection Size 1	:	2 in
Connection Size 2	:	2 in
Connection Type	:	Hose~NPT Male
Connection Type 1	:	Hose
Connection Type 2	:	NPTF
Cut-Off Factor	:	2.84 in
Dimension Standards	:	SAE J1176
Dimensions	:	5.91 in L x 3.39 in W x 3.39 in H
Finish	:	Dura-Kote
Fitting Type	:	Straight Hose Fitting
For Use With	:	EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses
Gender 2	:	Male
Hex Size	:	2-1/2 in
Hose Dash Size	:	32
Material	:	Steel
Material Construction	:	Carbon Steel
Nominal Size	:	2 in
Series	:	4S
Shape	:	Straight
Thread Size 2	:	2-11-1/2

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
