Weatherhead® 6SA20MP20

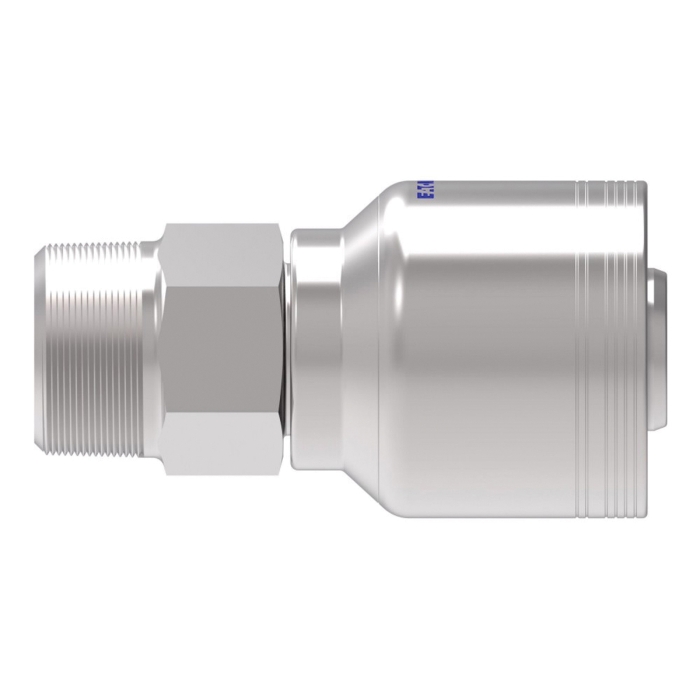

Weatherhead® 6S Series Dura-Kote Carbon Steel MNPTF 6-Spiral Rigid Crimp Straight Hose Fitting, 1-1/4 in

Manufacturer: Danfoss Power Solutions
Brand: Weatherhead®
ARGPN: 6SA20MP20

MPN: 6SA20MP20

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Weatherhead® 6-Spiral Rigid Crimp Straight Hose Fitting, Series: 6S, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1-1/4 in, Nominal Size: 1-1/4 in, Thread Size 2: 1-1/4-11-1/2, Hex Size: 1-11/16 in, Cut-Off Factor: 2.54 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses, Dimensions: 4.74 in L x 2.61 in W x 2.61 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1-1/4 in
Connection Size 2	:	1-1/4 in
Connection Type	:	Hose~NPT Male
Connection Type 1	:	Hose
Connection Type 2	:	NPTF
Cut-Off Factor	:	2.54 in
Dimension Standards	:	SAE J1176
Dimensions	:	4.74 in L x 2.61 in W x 2.61 in H
Finish	:	Dura-Kote
Fitting Type	:	Straight Hose Fitting
For Use With	:	FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses
Gender 2	:	Male
Hex Size	:	1-11/16 in
Hose Dash Size	:	20
Material	:	Steel
Material Construction	:	Carbon Steel
Nominal Size	:	1-1/4 in
Series	:	6S
Shape	:	Straight
Thread Size 2	:	1-1/4-11-1/2

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
