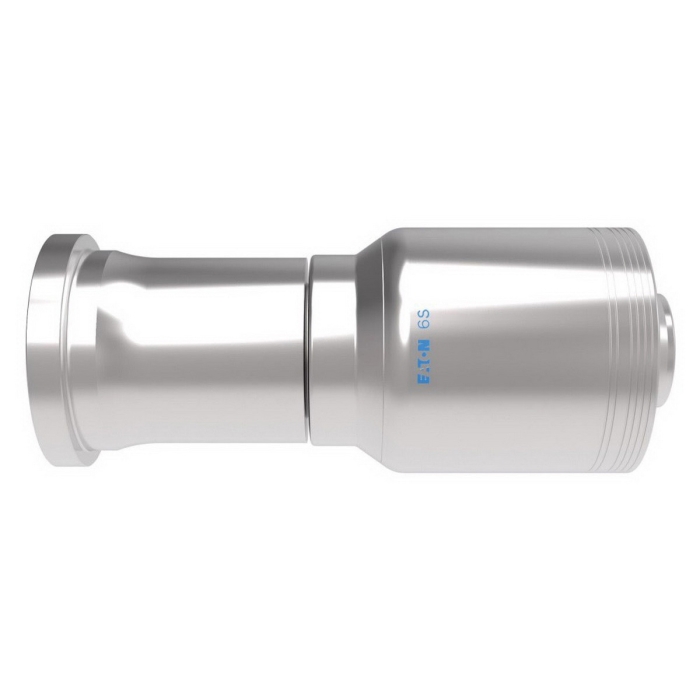

Weatherhead® 6S32FL32

Weatherhead® 6S Series Dura-Kote Carbon Steel SAE Code 61 Flange 6-Spiral Crimp Straight Hose Fitting, 2 in

Manufacturer: Danfoss Power Solutions
Brand: Weatherhead®
ARGPN: 6S32FL32

MPN: 6S32FL32

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Weatherhead® 6-Spiral Crimp Straight Hose Fitting, Series: 6S, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 2 in, Cut-Off Factor: 3.92 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses, Dimensions: 6.988 in L x 3.555 in W x 3.555 in H, Dimension Standards: SAE J1176

Connection Size 1	:	2 in
Connection Size 2	:	2 in
Connection Type	:	Hose~Code 61 Flange
Connection Type 1	:	Hose
Connection Type 2	:	SAE Code 61 Flange
Cut-Off Factor	:	3.92 in
Dimension Standards	:	SAE J1176
Dimensions	:	6.988 in L x 3.555 in W x 3.555 in H
Finish	:	Dura-Kote
Fitting Type	:	Straight Hose Fitting
For Use With	:	FC500-32, FC273B-20 to -32, FC606-16 to -24, EC810-20 to -32, GH466-20 and -24, H471-32, EC810-20 to -32, H485-20 and -24 Hoses
Gender 1	:	Female
Hose Dash Size	:	32
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	6S
Shape	:	Straight

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
