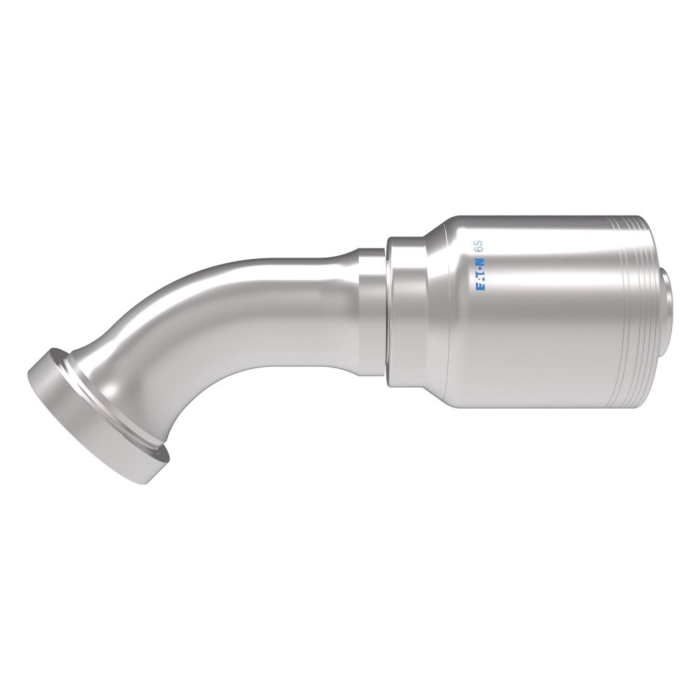

Weatherhead® 6S24FHA24

Weatherhead® 6S Series Dura-Kote Carbon Steel SAE Code 62 Flange 6-Spiral Crimp Hose 45 deg Elbow, 1-1/2 in

Manufacturer: Danfoss Power Solutions
Brand: Weatherhead®
ARGPN: 6S24FHA24

MPN: 6S24FHA24

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Weatherhead® 6-Spiral Crimp Hose 45 deg Elbow, Series: 6S, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 1-1/2 in, Cut-Off Factor: 5.36 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses, Dimensions: 9.679 in L x 2.964 in W x 4.504 in H, Dimension Standards: SAE J1176

Connection Size 1	:	1-1/2 in
Connection Size 2	:	1-1/2 in
Connection Type	:	Hose~Code 62 Flange
Connection Type 1	:	Hose
Connection Type 2	:	SAE Code 62 Flange
Cut-Off Factor	:	5.36 in
Dimension Standards	:	SAE J1176
Dimensions	:	9.679 in L x 2.964 in W x 4.504 in H
Finish	:	Dura-Kote
Fitting Type	:	45 deg Elbow
For Use With	:	FC500-32, FC273B-20 thru -32, FC606-16 thru -24, EC810-20 thru -32, GH466-20,-24 H471-32, EC810-20 thru -32, and H485-20,-24 Series Hoses
Gender 1	:	Female
Hose Dash Size	:	24
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	6S
Shape	:	45 deg Elbow

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
New patent pending dura-seal technology to eliminate hose assembly cool down leakage
Class zero leakage SAE J1176 on approved hose styles
Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
