Weatherhead® 10Z-692

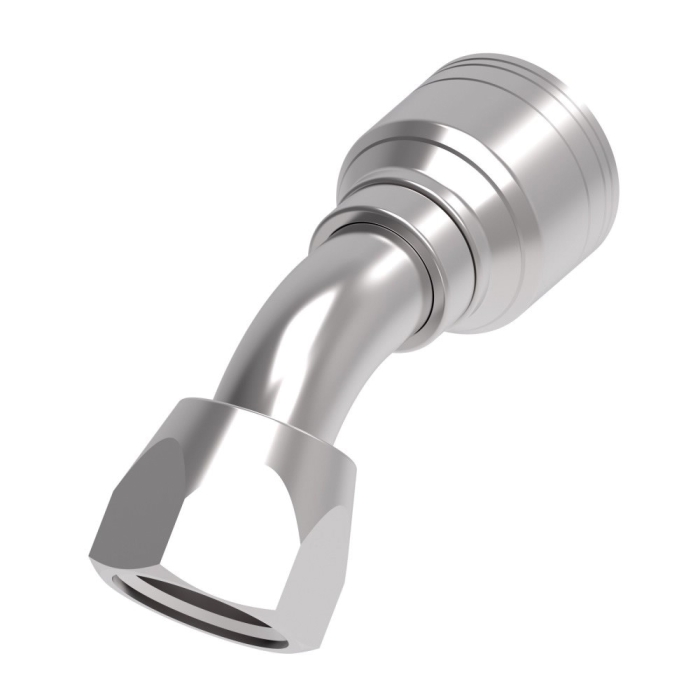

Weatherhead® Z Series Dura-Kote Carbon Steel Female 37 deg JIC Swivel Crimp Hose 45 deg Tube Elbow, 5/8 x 3/4 in

Manufacturer: Danfoss Power Solutions
Brand: Weatherhead®
ARGPN: 10Z-692

MPN: 10Z-692

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Weatherhead® Crimp Hose 45 deg Tube Elbow, Series: Z, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/4 in, Cut-Off Factor: 2.22 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 3.38 in L x 1.39 in W x 0.78 in H, Dimension Standards: SAE J1176

Connection Size 1	:	5/8 in
Connection Size 2	:	3/4 in
Connection Type	:	Hose~JIC Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	37 deg JIC Swivel
Cut-Off Factor	:	2.22 in
Dimension Standards	:	SAE J1176
Dimensions	:	3.38 in L x 1.39 in W x 0.78 in H
Finish	:	Dura-Kote
Fitting Type	:	45 deg Elbow
For Use With	:	H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Gender 2	:	Female
Hex Size	:	1-1/4 in
Hose Dash Size	:	10
Material	:	Steel
Material Construction	:	Carbon Steel
Nominal Size	:	3/4 in
Series	:	Z
Shape	:	45 deg Elbow
Thread Size 2	:	1-1/16-12
