Weatherhead® 16Z-P66 16Z-P66

Weatherhead® 16Z-P66

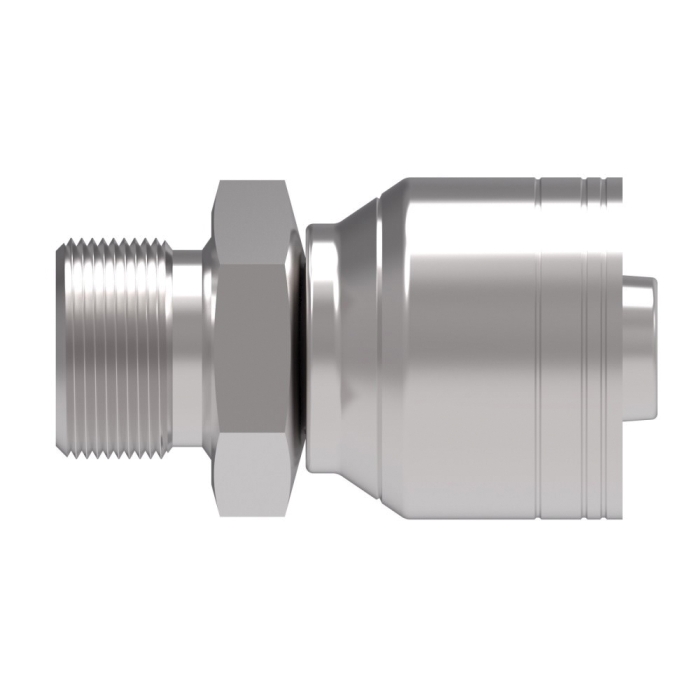

Weatherhead® Z Series Dura-Kote Carbon Steel Male BSPP 60 deg Cone Rigid Crimp Straight Hose Fitting, 1 in

  • Manufacturer: Danfoss Power Solutions
  • Brand: Weatherhead®
  • ARGPN: 16Z-P66
  • MPN: 16Z-P66
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Weatherhead® Rigid Crimp Straight Hose Fitting, Series: Z, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: BSPP 60 deg Cone, Gender 2: Male, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: G 1-11, Hex Size: 1.61 in, Cut-Off Factor: 1.44 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.79 in L x 1.94 in W x 1.94 in H, Dimension Standards: SAE J1176

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      Hose~BSPP Male
Connection Type 1      :      Hose
Connection Type 2      :      BSPP 60 deg Cone
Cut-Off Factor      :      1.44 in
Dimension Standards      :      SAE J1176
Dimensions      :      2.79 in L x 1.94 in W x 1.94 in H
Finish      :      Dura-Kote
Fitting Type      :      Straight Hose Fitting
For Use With      :      H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Gender 2      :      Male
Hex Size      :      1.61 in
Hose Dash Size      :      16
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1 in
Series      :      Z
Shape      :      Straight
Thread Size 2      :      G 1-11
  • Dura-Kote™ plating for superior corrosion resistance
  • Innovative design to deliver performance and maximum uptime
  • System engineered to extend hose assembly life

Applications: General-purpose low and medium-pressure hydraulics

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_04Z-10E_CAT.pdf
