ZSI-Foster SHD52

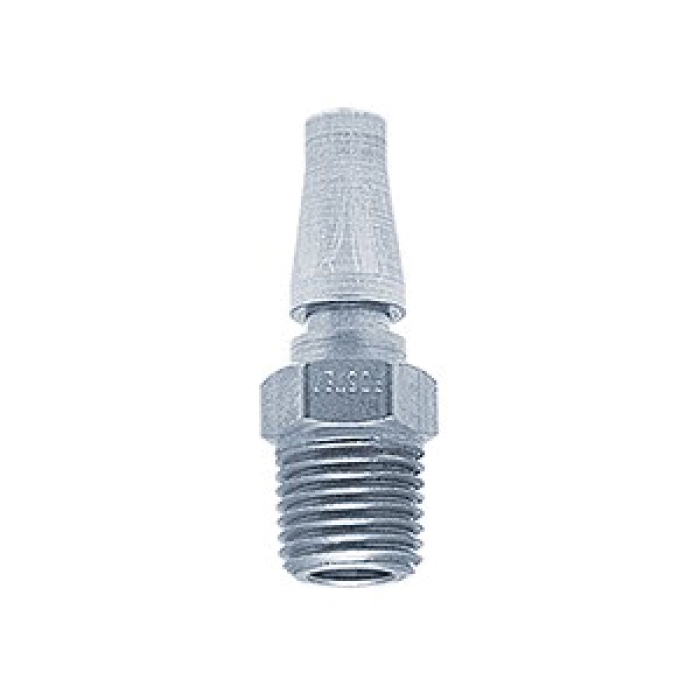

ZSI-Foster SHD Steel Pneumatic Interchange Plug, 1/2 in Male Quick Disconnect x 3/8 in MNPT
- Manufacturer: ZSI-Foster
- Brand: ZSI-Foster
- ARGPN: FOS SHD52
- MPN: SHD52
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for ZSI-Foster factory-direct delivery:
-
ZSI-Foster Pneumatic Interchange Plug, Series: SHD, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 11/16 in, 300 psi, Material Construction: Steel, Dimensions: 1.87 in L x 0.67 in W, -10 to 165 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPT |
| Dimensions | : | 1.87 in L x 0.67 in W |
| Gender 1 | : | Male |
| Gender 2 | : | Male |
| Hex Size | : | 11/16 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 300 psi |
| Series | : | SHD |
| Shape | : | Plug |
| Temperature Rating | : | -10 to 165 deg F |
| Thread Size 2 | : | 3/8-18 |
In a "One Way Shut-Off", only the socket has valving to shut-off the flow when disconnected, it is, therefore, installed on the pressure side of the line. The plug has no valving and exhausts the downstream line at disconnect.
- Engineered for speedy coupling and uncoupling, to lock - push-in, to unlock - rotate sleeve 1/8 turn
- Standard twist-lock couplings are ideal for low to medium air flows, such as air tools
- Interchange with schrader standard and heavy-duty
