CSI GW10-16X16

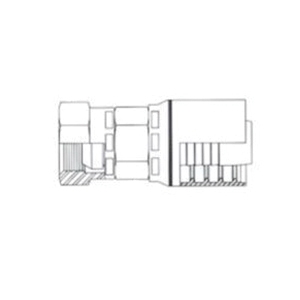

CSI GW Series Trivalent Zinc-Plated Female BSPP 60 deg Cone Swivel 4-Spiral Crimp Straight Hose Fitting, 1 in

Manufacturer: Couplamatic Systems Inc
Brand: CSI
ARGPN: GW10-16X16

MPN: GW10-16X16

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Couplamatic Systems Inc factory-direct delivery:
Add to cart

Description
Specs
Features
Documents

CSI 4-Spiral Crimp Straight Hose Fitting, Series: GW, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: BSPP 60 deg Cone Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: G 1-11, Hex Size: 1-3/8 x 1-1/2 in, Finish: Trivalent Zinc-Plated, For Use With: 100R12 Four Spiral (SP580, RC12 and DHEXR12), CS-Flex 5 Four Spiral (CS-Flex 5), CS-Flex 6 Four Spiral (CS-Flex 6), 100R2 Thin Cover (3/4 thru 2 in), 2SN (3/4 - 2 in) and 100R4 (1-1/2 and 2 in) Hoses

Connection Size 1	:	1 in
Connection Size 2	:	1 in
Connection Type	:	Hose~BSPP Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	BSPP 60 deg Cone Swivel
Finish	:	Trivalent Zinc-Plated
Fitting Type	:	Straight Hose Fitting
For Use With	:	100R12 Four Spiral (SP580, RC12 and DHEXR12), CS-Flex 5 Four Spiral (CS-Flex 5), CS-Flex 6 Four Spiral (CS-Flex 6), 100R2 Thin Cover (3/4 thru 2 in), 2SN (3/4 - 2 in) and 100R4 (1-1/2 and 2 in) Hoses
Gender 2	:	Female
Hex Size	:	1-3/8 x 1-1/2 in
Hose Dash Size	:	16
Nominal Size	:	1 in
Series	:	GW
Shape	:	Straight
Thread Size 2	:	G 1-11

Bite to the wire hose ends for 100R12 four spiral (SP580, RC12 and DHEXR12), CS-Flex 5 four spiral (CS-Flex 5), CS-Flex 6 four spiral (CS-Flex 6), 100R2 thin cover (3/4 thru 2 in), 2SN (3/4 - 2 in) and 100R4 (1-1/2 and 2 in). No skive required. The GW Series four spiral coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
