Dixon® 179C-0602 73-06-02

Dixon® 179C-0602

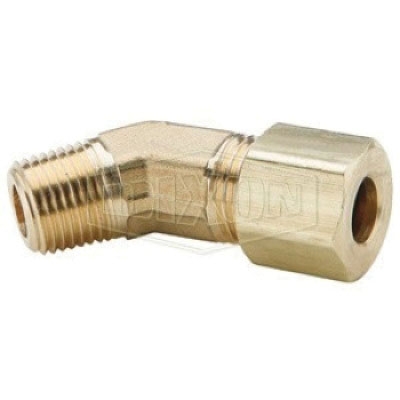

Dixon® 179C-0602 Brass 45 deg Elbow, 3/8 in Compression x 1/8 in Male Threaded

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 73-06-02
  • MPN: 179C-0602
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® 45 deg Elbow, Connection Type 1: Compression, Connection Size 1: 3/8 in, Thread Size 1: 9/16-24, Connection Type 2: Threaded, Gender 2: Male, Connection Size 2: 1/8 in, Hex Size: 1/8 in, 200 psi, Material Construction: Brass, Dimension Standards: SAE J512, -65 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/8 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Compression
Connection Type 2      :      Threaded
Dimension Standards      :      SAE J512
Gender 2      :      Male
Hex Size      :      1/8 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      200 psi
Shape      :      45 deg Elbow
Temperature Rating      :      -65 to 250 deg F
Thread Size 1      :      9/16-24

Instructions: No flaring, soldering or other preparation of tubing necessary to assemble.

  • Slide nut, then sleeve onto tubing.
  • The thread end of the nut must face out.
  • Insert tube into the fitting.
  • Be sure the tube is bottomed on the fitting shoulder.
  • Assemble nut to body, and tighten hand tight.
  • Then follow the number of appropriate wrench turns for the given size.

    Safety Notes: Not recommended for steel tubing.

  • Not recommended for applications using gaseous media.

    Applications: Use with copper, aluminum and thermoplastic tubing

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_179C0602_SS.pdf
    • pdfSDS https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_179C0602_SDS.pdf
