Dixon® 60NAB3 1460-03

Dixon® 60NAB3

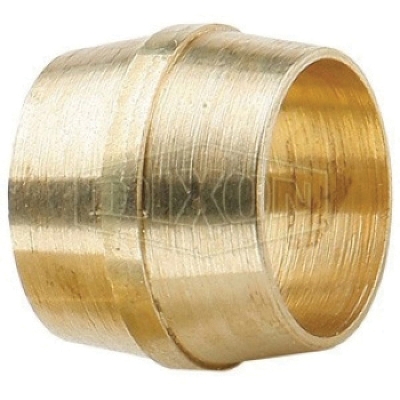

Dixon® 60NAB3 Brass Compression Air Brake Sleeve, 3/16 in Tube

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 1460-03
  • MPN: 60NAB3
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Compression Air Brake Sleeve, Connection Type 1: Tube, Connection Size 1: 3/16 in, Connection Type 2: Tube, Connection Size 2: 3/16 in, 150 psi, Material Construction: Brass, Dimensions: 0.23 in L, Dimension Standards: SAE J246, SAE 100115, -40 to 200 deg F, For Use With: SAE J844 Type A and B Tubing

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/16 in
Connection Size 2      :      3/16 in
Connection Type 1      :      Tube
Connection Type 2      :      Tube
Dimension Standards      :      SAE J246, SAE 100115
Dimensions      :      0.23 in L
For Use With      :      SAE J844 Type A and B Tubing
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      150 psi
Shape      :      Sleeve
Temperature Rating      :      -40 to 200 deg F
  • Positive grip
  • Machined from CA260, CA345 or CA377 brass
  • Utilize ribbed sleeve for compression and positive grip

Applications: For use in air brake systems or cab controls

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_SS.pdf
