Dixon® 69NAB34VS

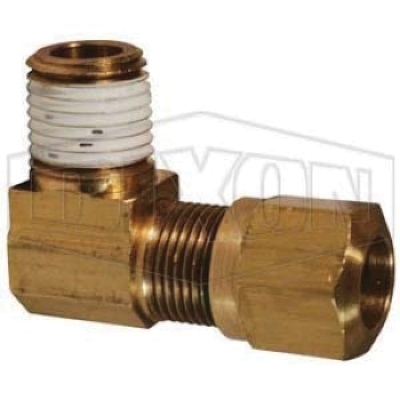

Dixon® 69NAB34VS Brass Compression Air Brake Elbow, 3/16 in Tube x 1/4 in Male Threaded

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 1469-03-04
  • MPN: 69NAB34VS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Compression Air Brake Elbow, Connection Type 1: Tube, Connection Size 1: 3/16 in, Thread Size 1: 5/16-24, Connection Type 2: Threaded, Gender 2: Male, Connection Size 2: 1/4 in, 150 psi, Material Construction: Brass, Dimension Standards: SAE J246, SAE 100202 BA, -40 to 200 deg F, For Use With: SAE J844 Type A and B Tubing

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/16 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Tube
Connection Type 2      :      Threaded
Dimension Standards      :      SAE J246, SAE 100202 BA
For Use With      :      SAE J844 Type A and B Tubing
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      150 psi
Shape      :      Elbow
Temperature Rating      :      -40 to 200 deg F
Thread Size 1      :      5/16-24
  • Positive grip
  • Machined from CA260, CA345 or CA377 brass
  • Pre-applied thread sealant
  • Thread sealant may be white or burnt orange
  • Utilize ribbed sleeve for compression and positive grip

Instructions: Cut tubing squarely maximum of 15 deg angle allowable.

  • Check that port or mating part is clean and free of debris.
  • Insert tubing into fittings until it bottoms on seat.
  • Tighten nut with wrench until one thread remains visible on the fittings body, (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench tightened according to the tube size used.

    Applications: For use in air brake systems or cab controls
