Dixon® 62NBH10 1474-10-10

Dixon® 62NBH10

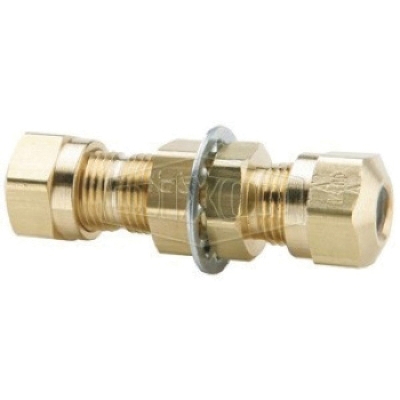

Dixon® 62NBH Brass Compression Air Brake Bulkhead Union, 5/8 in Tube

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 1474-10-10
  • MPN: 62NBH10
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Compression Air Brake Bulkhead Union, Series: 62NBH, Connection Type 1: Tube, Connection Size 1: 5/8 in, Thread Size 1: 13/16-18, Connection Type 2: Tube, Connection Size 2: 5/8 in, Thread Size 2: 13/16-18, Hex Size: 1 in, 150 psi, Material Construction: Brass, Dimensions: 3.04 in L, Dimension Standards: SAE J246, -40 to 200 deg F, For Use With: SAE J844 Type A and B Tubing

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/8 in
Connection Size 2      :      5/8 in
Connection Type 1      :      Tube
Connection Type 2      :      Tube
Dimension Standards      :      SAE J246
Dimensions      :      3.04 in L
For Use With      :      SAE J844 Type A and B Tubing
Hex Size      :      1 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      150 psi
Series      :      62NBH
Shape      :      Union
Temperature Rating      :      -40 to 200 deg F
Thread Size 1      :      13/16-18
Thread Size 2      :      13/16-18
  • Positive grip
  • Machined from CA260, CA345 or CA377 brass
  • Utilize ribbed sleeve for compression and positive grip

Instructions: Cut tubing squarely maximum of 15 deg angle allowable.

  • Check that port or mating part is clean and free of debris.
  • Insert tubing into fittings until it bottoms on seat.
  • Tighten nut with wrench until one thread remains visible on the fittings body, (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench tightened according to the tube size used.

    Applications: For use in air brake systems or cab controls

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_70NAB32_SS.pdf
    • pdfSDS 1 https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_62NBH10_SDS_1.pdf
    • pdfSDS https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_62NBH10_SDS.pdf
