Gates® 16GS-16FJX

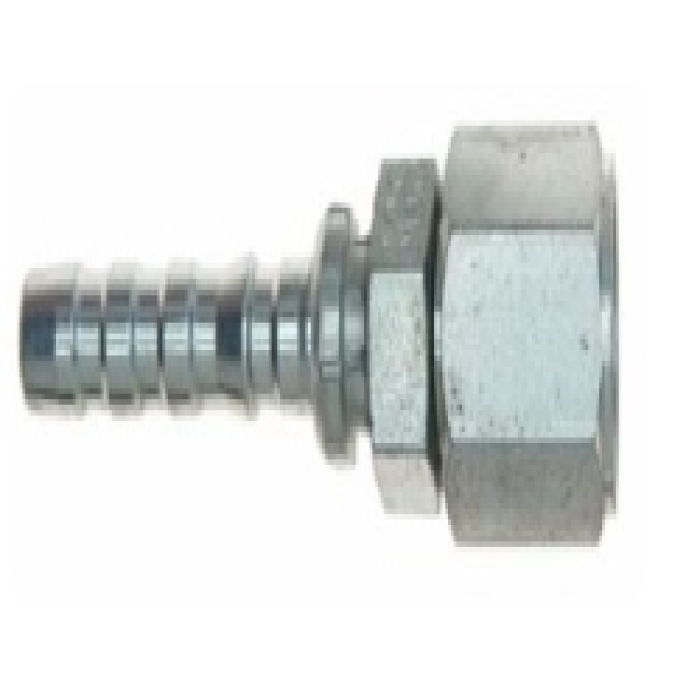

Gates® GlobalSpiral™ 16GS-16FJX TuffCoat® Steel Female 37 deg JIC Flare Swivel Crimp Straight Hose Fitting, 1 in

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 16GS-16FJX

MPN: 16GS-16FJX

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-1/2 x 1-1/2 in, 6000 psi, Cut-Off Factor: 2.07 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 4.3 in L, 250 deg F

Connection Size 1	:	1 in
Connection Size 2	:	1 in
Connection Type	:	Hose~JIC Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	37 deg JIC Flare Swivel
Cut-Off Factor	:	2.07 in
Dimensions	:	4.3 in L
Finish	:	TuffCoat®
Fitting Type	:	Straight Hose Fitting
Gender 2	:	Female
Hex Size	:	1-1/2 x 1-1/2 in
Hose Dash Size	:	16
Material	:	Steel
Material Construction	:	Steel
Nominal Size	:	1 in
Pressure Rating	:	6000 psi
Shape	:	Straight
Sub Brand	:	GlobalSpiral™
Temperature Rating	:	250 deg F
Thread Size 2	:	1-5/16-12

Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
Surpasses one million impulse cycles
One stem used for all spiral hoses
