Gates® 24GSM-24FL45M

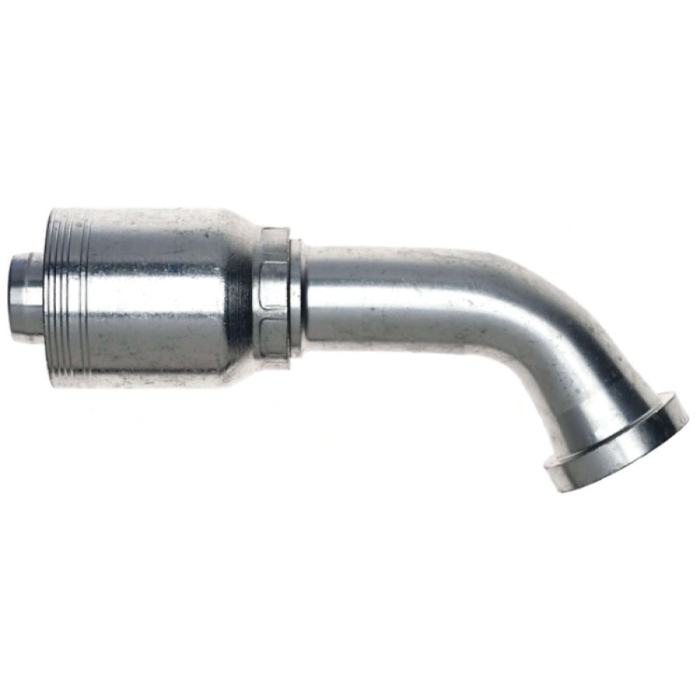

Gates® GlobalSpiral™ Max 24GSM-24FL45M TuffCoat® Steel Code 61 O-Ring Flange Crimp Hose 45 deg Medium Drop Elbow, 1-1/2 in

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 24GSH-24FL45M

MPN: 24GSM-24FL45M

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Gates Corp factory-direct delivery:
Sold As: 1/PK
Add to cart

Description
Specs
Features
Documents

Gates® GlobalSpiral™ Max Crimp Hose 45 deg Medium Drop Elbow, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: Code 61 Flange, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, 5000 psi, Cut-Off Factor: 5.31 in, Material Construction: Steel, Finish: TuffCoat®, 250 deg F

Connection Size 1	:	1-1/2 in
Connection Size 2	:	1-1/2 in
Connection Type	:	Hose~Code 61 Flange
Connection Type 1	:	Hose
Connection Type 2	:	Code 61 Flange
Cut-Off Factor	:	5.31 in
Finish	:	TuffCoat®
Fitting Type	:	45 deg Elbow
Hose Dash Size	:	24
Material	:	Steel
Material Construction	:	Steel
Nominal Size	:	1-1/2 in
Pressure Rating	:	5000 psi
Shape	:	45 deg Elbow
Sub Brand	:	GlobalSpiral™ Max
Temperature Rating	:	250 deg F

1-1/2 in no-skive coupling design for high-pressure spiral wire hose. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.

Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
Coated with TuffCoat® plating, more than five times better corrosion-resistant than SAE ASTM B117 specification
